VESSEL REVIEW | Pilot 61 – Ice-capable pilot boat for Poland’s Swinoujscie and Szczecin harbours

VESSEL REVIEW | Pilot 61 – Ice-capable pilot boat for Poland’s Swinoujscie and Szczecin harbours
Published on

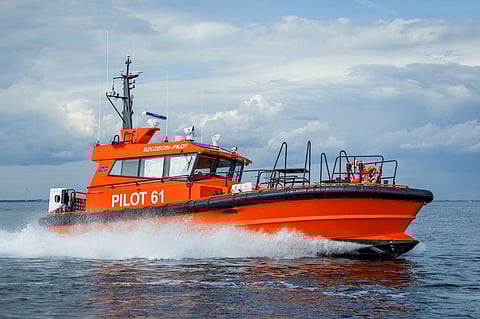

Estonian builder Baltic Workboats has delivered a newbuild vessel to Szczecin Pilot, a Polish harbour pilots' association that operates primarily in the Szczecin-Swinoujscie region.

Pilot 61 replaces an older craft, and the owner's brief was for an economical pilot boat with quiet, ergonomic work space and a minimum speed of 22 knots.

She has wave piercing hull design to reduce pitching motions and provide a smoother ride for the captain and crew at all speeds. Baltic Workboats has found that, compared to a traditional hull, a wave-piercing hull design for its pilot boats provides 40 per cent less vertical acceleration and up to a 30 per cent improvement in fuel economy.

The wheelhouse provides a safe working environment both in the cabin and for the crew on the deck. The wheelhouse offers nearly 360-degree visibility. The captain has a centre position with uninterrupted views of the deck and boarding areas with additional skylight windows.

The boat's self-righting feature increases the safety of life at sea even during the toughest weather conditions. The boats comply with Lloyds Register rules and have the highest quality standard that can be provided for work boats of its type.

Despite its powerful machinery, the advanced design and interior assembly methods enable Pilot 61 to provide impressive low vibration and low noise performance.

The hull is reinforced to withstand light ice conditions relevant to the southern Baltic and Danish waters, a necessity for the vessel's operational area of Poland's Świnoujście and Szczecin harbours. She can handle 30 centimetres of broken ice or five centimetres solid ice at up to five knots.

Pilot 61 is supplied with a conventional propeller system with two Volvo Penta D13MH main engines each providing 368 kW at 1,400 rpm. Power is transferred from the main diesel engines through two ZF 360 gearboxes to shaft lines and two five-blade CJR propellers.

The main engines are self-contained, having built-in pumps, heat exchangers, and integrated lube oil and cooling systems. The heat exchanger is seawater resistant with an integral expansion tank. The engines are equipped with an MCC monitoring system.

All electric components are of proven maritime quality to IEC standards, and the electrical system on board the vessel functions as an uninterruptable power supply. The distribution network is a 24V floating net transformed to uninterrupted 230 VAC true sinus network with good overcapacity and RCD switchboard.

Deck equipment comprises a hydraulic MOB platform in the aft and a boom for a MOB davit on the wheelhouse side.

Pilot 61
SPECIFICATIONS
Type of vessel:Pilot boat
IMO Number:9878424
Classification:Lloyds Register of Shipping
Port of registry:Szczecin
Flag:Poland
Year of completion:2019
Owner:Szczecin Pilot, Poland
OperatorSzczecin Pilot, Poland
Designer:Baltic Workboats, Estonia
Builder:Baltic Workboats, Estonia
Construction material:Aluminium
Length overall:14.95 metres
Length waterline:14.70 metres
Length bp:14.25 metres
Beam:4.50 metres
Draught:1.33 metres
Depth:2.20 metres
Displacement:23,81 tonnes
Gross tonnage:18
Net tonnage:5.6
Main engines:2 x Volva Penta D13MH, each 368 kW
Gearboxes:2 x ZF 360
Propulsion:2 x FPP
Side thruster/s:Sleipner SP300HYD-U19
Steering system:Kobelt
Maximum speed:27 knots
Cruising speed:22 knots
Range:270 nm
Batteries:Victron
Radar/s:Furono
Depth sounder/s:Airmar
Radio/s:Sailor
Autopilot:Simrad
Compass/es:Cassens
Plotters:Furono
Audio video system:Fusion
Other deck equipment:Hydraulic MOB platform in the aft and boom for MOB davit on wheelhouse side
Paints/coatings:Intershield/Interthane
Windows:Bohamet
Seating:Norsap
Lighting:Hella
Interior designer:Baltic Workboats
Interior fitout/furnishings:Baltic Workboats
Safety equipment:Viking
Liferaft:Viking
Type of fuel:Diesel
Fuel capacity:2 x 800 litres
Fuel consumption:170 litres/h at 25 knots
Freshwater capacity:120 litres
Sewage/blackwater capacity:120 litres
Crew:3
Passengers:2
