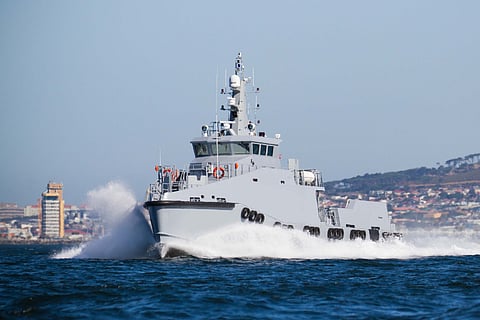

![VESSEL REVIEW | South African-built escort and patrol vessel for Gulf of Guinea anti-piracy missions](http://media.assettype.com/bairdmaritime%2Fimport%2Fwp-content%2Fuploads%2FPic-137-Edit.jpg?w=480&auto=format%2Ccompress&fit=max)
Nautic Africa, a subsidiary of South African shipbuilder Paramount Maritime Holdings, recently completed the construction and delivery of a new multi-purpose vessel optimised for maritime security missions.
Classed by Bureau Veritas, the aluminium-hulled, semi-displacement vessel will be utilised by an undisclosed Nigerian operator for crew and cargo transfer and other international oil company (IOC)-related assignments in addition to providing escort for larger commercial vessels in the Gulf of Guinea, which has become a piracy hotspot.
The vessel has an LOA of 35 metres, an overall beam of 7.5 metres, a draught of 1.85 metres, and a maximum displacement of 200 tonnes.
Power is provided by three Caterpillar C32 main engines that each produce 1,193 kW. The engines drive three Teignbridge fixed-pitch propellers via ZF 3050 gearboxes to deliver a maximum speed of 28 knots and a range of 1,150 nautical miles at a cruising speed of 20 knots. Two 35kW DTG Propulsion GT-370 electric-powered bow thrusters have also been installed.
The vessel features liveaboard accommodations that will enable the eight crewmembers and 10 other personnel to operate far from shore for up to 30 days before requiring refueling and resupply. The accommodations include single-person cabins for the captain and the chief engineer on the main deck as well as two four-person cabins and four-person cabins below deck. A galley, a saloon, and a medical bay are all located on the main deck.
A ducted, chilled water air conditioning system provides some comfort when operating in the warm waters of the Gulf of Guinea. Two 107kVA generators supply power for the air conditioning and the vessel's array of electronics, which include two X-band radars, GPS, a satellite compass, two GMDSS A2 VHF radios, and an MF/HF transceiver.
Due to the security situation in its area of operations in the waters off West Africa, the vessel boasts high levels of ballistic protection. The composite wheelhouse is certified to withstand 7.62x39mm armour-piercing incendiary projectiles while the deckhouse was built to be near-impervious to 7.62x51mm NATO ball ammunition. Even the wheelhouse windows feature ballistic protection, being designed to withstand 7.62mm full-metal jacketed rounds.
Nautic said these features will ensure that the crew, the security personnel, and everyone else on board are protected from impacts by bullets of typical assault rifle calibres.
The vessel is also equipped with an external FiFi0.5 system, which includes a monitor with a reach of 120 metres and a pump with a flow rate of 1,200 cubic metres per hour.
There is onboard space for a 6.5-metre tender capable of accommodating six people. The tender is launched and recovered using an A-frame-mounted davit supplied by Palfinger.
35-metre Patrol Boat/Crewboat | |
SPECIFICATIONS | |
Type of vessel: | Patrol vessel/Crewboat |
Classification: | Bureau Veritas |
Flag: | Nigeria |
Owner: | Unknown Nigerian owner |
Designer: | KD Marine Design, South Africa |
Builder: | Nautic Africa, South Africa |
Hull construction material: | Aluminium |
Superstructure construction material: | Ballistic-protected composite |
Deck construction material: | Aluminium |
Length overall: | 35 metres |
Length waterline: | 34.4 metres |
Beam: | 7.5 metres |
Draught: | 1.85 metres |
Displacement: | 200 tonnes |
Gross tonnage: | 230 |
Main engines: | 3 x Caterpillar C32, each 1,193 kW |
Gearboxes: | 3 x ZF 3050 |
Propulsion: | 3 x Teignbridge fixed-pitch propellers |
Generators: | 2 x 107 kVA |
Side thrusters: | 2 x DTG Propulsion GT-370, each 35 kW |
Steering system: | Wills Ridley |
Maximum speed: | 28 knots |
Cruising speed: | 20 knots |
Range: | 1,150 nautical miles |
Batteries: | Varta |
Radars: | 2 x X-band |
Radio: | MF/HF transceiver |
Compass: | Satellite |
GMDSS: | 2 x VHF A2 radios |
Other deck equipment: | Palfinger boat davit |
Other equipment installed: | Chilled-water air-conditioning system |
Windows: | NIJ level III ballistic-protected glass |
Firefighting equipment: | FiFi0.5 equipment including monitor and 1,200m³/h pump |
Tender: | 6-pax boat |
Type of fuel: | Diesel |
Fuel capacity: | 44,750 litres |
Freshwater capacity: | 19,000 litres |
Sewage/blackwater capacity: | 3,000 litres |
Accommodation: | Captain's cabin; chief engineer's cabin; 2 x four-person cabins; 4 x two-person cabins; galley; saloon; medical bay |
Crew: | 8 |
Passengers: | 10 |
