With the handover of yard number 484, named Raiymbek Batyr, Shipyard De Hoop commenced the delivery of four sister tugs to leading Kazakh marine fleet operator, Caspian Offshore Construction (COC), who, in consortium with Danish Blue Water Shipping, will operate this newbuild fleet for the Tengizchevroil Future Growth Project-Wellhead Pressure Management Project, in Kazakhstan.

The first vessel in the series, Kabanbay Batyr, was handed over on completion of successful sea/river trials at the end of March and immediately began her maiden trip – sailing by sea in the direction of Kazakhstan.

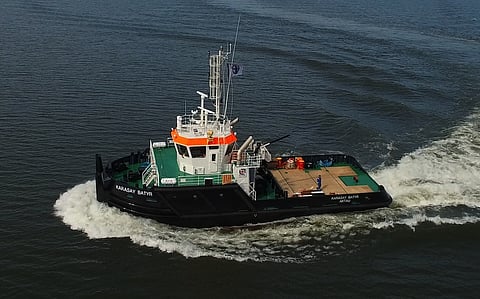

In succession to this, yard number 482, Karasay Batyr, 483, Bogenbay Batyr, and Raiymbek Batyr, were delivered following sea trials in April and May respectively. A pair of smaller tugs was also part of the order, making for a total of six vessels.

"Batyr" is an honorific term meaning "brave warrior" in the Kazakh language. All six vessels are named after famous Kazakh warriors.

The 29.15- by 10.73-metre ice class tugs, featuring azimuth stern drive propulsion units and a bollard pull of 42 tonnes, will assist with the "straight-line" transportation of barges and vessels with modular cargo, components and supporting equipment, along the CaTRo (cargo transportation route) channel to the offloading facility in Prorva, in the North Caspian.

The design is characterised by a special hull, with a shallow draught and large diameter propellers. The four larger ships were built at De Hoop's headquarters in Lobith.

Raiymbek Batyr and her sisters each provide night accommodation for a total of nine crewmembers. De Hoop's knowledge and experience of luxury cruise vessels is reflected in the high standard of accommodation, including low noise and vibration levels to enhance the comfort of the crew.

Besides the crew cabins, the accommodation consists of a changing room with separate sanitary spaces, laundry, galley, mess room and cooled/dry storages.

As a result of the design of the vessel and its propulsion configuration, in combination with sophisticated insulation, including a floating interior, and climate control system, pleasantly low sound levels are achieved.

Using two Mitsubishi S16R-MPTAW-2 main engines, rated at 1,650rpm and providing 1,380kW, Raiymbek Batyr can achieve a service speed of 12.8 knots.

The engines directly drive two Schottel SRp 360FP rudder propellers with nozzled propellers. These main thrusters are slightly recessed, limiting the minimum operational draught to only 2.80 metres.

The auxiliary equipment consists of two Veth 116kW (at 1,500rpm) generator sets, with Sisu 49 CTAG (C0201) diesel engines.

The deck equipment on the 80-square-metre deck area includes a Sormec FB series fully hydraulic foldable knuckle boom marine crane, with a telescopically extendable boom for three tonnes at an outreach of ten metres.

The aft deck accommodates a Kraaijeveld towing winch and a crucifix bollard for 45-tonne pulling force, combined with a Mampaey quick-release towing hook.

The foredeck features a 15-tonne crucifix, as well as two Kraaijeveld barge coupling winches and a Kraaijeveld anchor winch.

Raiymbek Batyr
SPECIFICATIONS
Type of vessel:ASD tug
Owner:Caspian Offshore Construction, Khazakstan
Designer/builder:Shipyard De Hoop, Netherlands
Length overall:29.15 metres
Length, moulded:26.86 metres
Length bp:27.42 metres
Beam overall:10.73 metres
Beam, moulded:10.00 metres
Depth:4.60 metres
Design draught:2.80 metres
Deck area:80m2
GT:336
Main engines:2 x Mitsubishi S16R-MPTAW-2, each 1,380kW @ 1,650rpm
Propulsion:2 x Schottel SRp 360FP rudder propellers
Gensets:

2 x Veth generators, each 116kW @ 1,500rpm;

2 x Sisu 49 CTAG (C0201) diesel engines

Bollard pull:42 tonnes
Maximum speed:12.8 knots
Deck crane:Sormec FB, 3 tonnes @ 10m
Towing winch:Kraaijeveld
Towing hook:Mampaey
Coupling winches:2 x Kraaijeveld
Anchor winch:Kraaijeveld
Fuel oil:80 tonnes
Fresh water:25 tonnes
Sewage:25 tonnes
Accommodation:

3 x 2pax;

3 x 1pax
