VESSEL REVIEW | Shimokita Maru – Japan’s NS United places hybrid LNG-electric limestone carrier into service

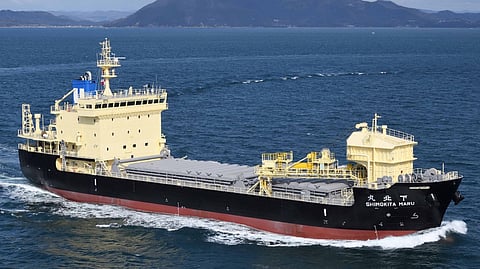

Shimokita Maru (Photo: Tsuneishi Shipbuilding)
Shimokita Maru (Photo: Tsuneishi Shipbuilding)
Published on

Japan's Tsuneishi Shipbuilding recently handed over a new bulk carrier to local shipowner NS United Kaiun Kaisha. Shimokita Maru replaces an older, similarly named vessel in the NS United fleet.

The newer Shimokita Maru has an LOA of 93.8 metres (308 feet), a moulded beam of 18.2 metres (59.7 feet), a moulded depth of 9.9 metres (32 feet), and a deadweight tonnage of 5,646. It will be operated mainly on the route between the ports of Shiriyazaki in Aomori and Muroran, transporting limestone under a charter contract with Nippon Steel Corporation and Nippon Steel Cement.

Hybrid propulsion for a range of operating modes

The vessel is powered by a hybrid propulsion system consisting of an 8L30KG 3,560kW (4,770hp) LNG-fuelled engine and a 2,847kWh lithium-ion battery pack manufactured by Kawasaki Heavy Industries. The batteries will be used mainly for entering and leaving port, as these will help the vessel in achieving zero emissions. LNG supplied by Japan Petroleum Exploration will meanwhile be used for high-power, long-distance, and long-duration navigation.

The hybrid propulsion system does not affect the vessel's loading and unloading operations, similar to conventional vessels. This is due to the design of the cargo holds. Measures to control limestone dust, vibrations, and unit lavatory adoption in all cabins will improve safety and the onboard living environment.

Low emissions combined with enhanced crew comfort

The LNG fuel will reduce CO2 emissions by approximately 24 per cent compared with conventional heavy fuel oil, and the vessel's exhaust gas does not contain SOx. The NOx emissions will also be far below the maximum limit according to IMO Tier III regulations.

The LNG tanks use seven per cent nickel steel plate developed by Nippon Steel Corporation, which the company claims delivers the same performance as conventional nine per cent nickel steel plate.

This accommodation block is laid out with a bright and open space that is designed to provide the crew with a relaxing and stress-free environment. The multifunctional furniture pieces can also be rearranged within the compact space depending on crew preferences. The combination of fabrics and furnishings was also the responsibility of the yard.

Shimokita Maru
SPECIFICATIONS
Type of vessel:Bulk carrier
Classification:ClassNK NS*(CS)(SUL, EQ U LFF, NC)(ESP)(NOx-III(GOE))(SOx(LFF)) MNS*
Flag:Japan
Owner:NS United Kaiun Kaisha, Japan
Builder:Tsuneishi Shipbuilding, Japan
Length overall:93.8 metres (308 feet)
Beam:18.2 metres (59.7 feet)
Depth:9.9 metres (32 feet)
Deadweight tonnage:5,646
Gross tonnage:5,154
Main engine:Kawasaki Heavy Industries 8L30KG, 3,560 kW (4,770 hp) at 750 rpm
Generators:3 x 2,376 kVA
Batteries:Kawasaki Heavy Industries, 2,847 kWh
Other equipment installed:Nippon Steel Corporation LNG fuel tanks
Interior furnishings:Tsuneishi Shipbuilding
Type of fuel:LNG
Operational area:Japan
