VESSEL REVIEW | Zhongguo Hai Jian 7009 – Monitoring vessel for China’s Nanji Islands Marine Reserve

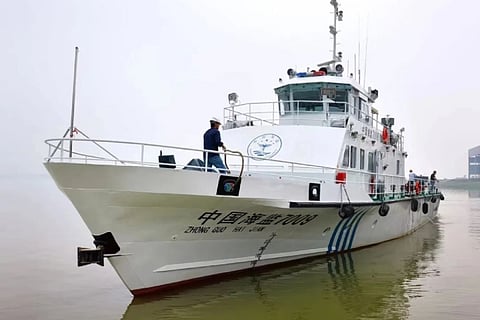

Photo: China Classification Society
Photo: China Classification Society
Published on

The Nanji Islands National Marine Nature Reserve Administration of China recently took delivery of a new marine monitoring vessel.

Named Zhongguo Hai Jian 7009 ("China Marine Surveillance 7009"), the vessel was designed and built by local engineering company the Yaguang Technology Group in compliance to China Classification Society rules. Its missions will include anti-illegal fishing patrols in the waters of the Nanji Islands Biosphere Reserve, a UNESCO-designated marine protected chain of 52 islands lying just south-east of Pingyang County in eastern China's Zhejiang province.

<em>Photo: Pingyang County Government</em>
Photo: Pingyang County Government

The newbuild has a steel hull, an aluminium superstructure, an LOA of 34.74 metres, and a beam of 6.6 metres, making it one of the largest vessels in the current maritime surveillance fleet of the Nanji Islands Biosphere Reserve. Three engines driving propellers enable the vessel to attain a speed of 25 knots and a range of about 250 nautical miles at a cruising speed of 16 knots, while anti-roll systems provide added stability at high speeds.

The design of the vessel is optimised for patrols in coastal waters. Operations are possible even under extreme weather conditions.

Zhongguo Hai Jian 7009
SPECIFICATIONS
Type of vessel:Patrol vessel
Classification:China Classification Society
Flag:China
Operator:Nanji Islands National Marine Nature Reserve Administration, China
Designer:Yaguang Technology Group, China
Builder:Yaguang Technology Group, China
Hull construction material:Steel
Superstructure construction material:Aluminium
Length overall:34.74 metres
Beam:6.6 metres
Main engines:3
Propulsion:3 x propellers
Maximum speed:25 knots
Cruising speed:16 knots
Range:250 nautical miles
Operational area:Nanji Islands, China
