VESSEL REVIEW | Ferry Del Chaco – Unusual, shallow-draught Ro-Pax for Paraguay’s river network

VESSEL REVIEW | Ferry Del Chaco – Unusual, shallow-draught Ro-Pax for Paraguay’s river network
Published on

One of the most logical ways to deal with congestion issues is to get vehicles off the roads. A growing number of administrations are doing this by implementing Ro-Ro ferries where practical. The Rio Paraguay, flowing through the lowlands of land-locked Paraguay offers an excellent riverine option.

The river carries large bulk cargos in barges pushed by Mississippi-style push boats over 700 nautical miles up from the sea at Buenos Aires. A shallow draught Ro-Ro ferry for local short-haul urban transport makes good sense.

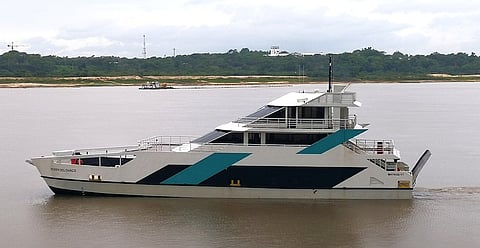

Recently launched from Terminal Occidental's own shipyard, the Chaco ferry in Paraguay meets these criteria. Serving multiple ports on both sides of the river around Asunción and the Port of Villa Hayes, the ferry will be an important addition to the area's transportation infrastructure.

Built of A36 naval steel on a catamaran hull, the 35.85- by 10.85-metre ferry features hydraulically operated ramps both fore and aft for ease of loading. Capacity on the main deck will allow for up to 18 light vehicles at a time.

Above the vehicle deck, comfortable air-conditioned seating is provided for up to 90 passengers with a coffee kiosk, toilets, video entertainment and panoramic views.

On the third deck, a VIP passenger area, is located just aft of the futuristic wheelhouse. The area includes provision for meetings and a minibar plus additional toilets. An emergency generator is installed on an open after deck.

The ferry will travel its 25-kilometre total route at speeds up to ten knots. Engine rooms, located in the twin catamaran hulls, are each fitted with a Cummins KTA19-M3 diesel engine producing 600 horsepower (450 kW) at 1,800 rpm. The engines turn four-blade bronze 1,100 by 1,032mm propellers through Twin Disc MG521 gears with 3:1 reduction.

The hulls are divided into multiple watertight compartments and include fuel (14,000 litres) and potable water tanks (6,000 litres) as well as ballast tanks.

Named Ferry Del Chaco, the vessel is classed by RINA to all relevant SOLAS and IMO standards. It will operate with a crew of five.

Ferry Del-Chaco
SPECIFICATIONS
Type of vessel:Ro-Pax
Classification:RINA
Port of registry:Asunción
Flag:Paraguay
Owner:Terminal Occidental, Paraguay
Builder:Terminal Occidental, Paraguay
Construction material:Steel
Length:35.85 metres
Beam:8.5 metres
Main engines:2 x Cummins KTA19-M3, 600 hp (450 kW) at 1,800 rpm
Gearboxes:2 x Twin Disc MG521, 3:1
Propulsion:2 x 4-blade, bronze 1,100 by 1,032mm propellers
Cruising speed:10 knots
Fuel capacity:14,000 litres
Freshwater capacity:6,000 litres
Crew:5
Vehicles:18
Passengers:90
