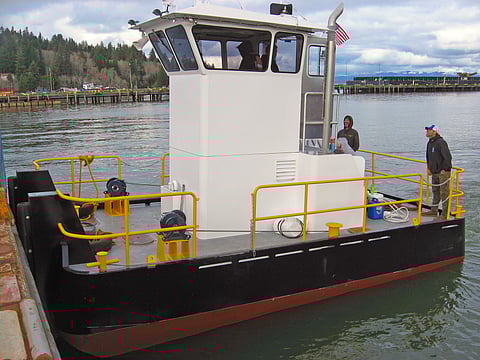

The Walla Walla District of the US Army Corps of Engineers (USACE) recently took delivery of a new tug intended to support activities at the Little Goose Dam on the stretch of the Snake River that passes through eastern Washington State.

Built by WCT Marine and Construction of Astoria, Oregon, to a workboat design that was developed by local naval architects Crescere Marine, the all-steel vessel is tasked primarily with preventing debris from floating into and clogging up the dam, which has been supplying hydroelectric power to Washington's Columbia and Whitman Counties for over 50 years.

The tug has a length of 26 feet (7.92 metres), a beam of 13.5 feet (4.1 metres), and a draught of only five feet (1.5 metres) even at full load. The small size not only enables it to easily sail in the waters in and around the highly important dam, it also allows it to be loaded onto and transported via truck as an alternative option for deployment. The vessel is thus also fitted with four heavy lifting eyes to allow it be lifted and lowered via crane.

The pilothouse was kept as low as possible to make the vessel compact enough for road transport. However, it still offers an elevated cabin height to provide the operator with an improved all-around view.

<em>Photo: Cummins</em>
Photo: Cummins

The tug has a relatively wide beam considering its small size to provide enough space in the engine compartment for a pair of Cummins QSB6.7 six-cylinder, four-stroke diesels that each have a rated output of 301 hp (224 kW). The engines, which are EPA Tier III-compliant, turn two Workhorse open, four-bladed 32- by 20-inch (812- by 508-millimetre) propellers via horizontal driveshafts and ZF 325-I gearboxes with 2.957:1 reduction to deliver a bollard pull of 5.5 tons (4.5 tonnes).

The tug is also fitted with two full-size push knees, tankage for up to 350 gallons (1,324 litres) of fuel, jog stick steering, and R.W. Fernstrum and Company keel coolers for the engines installed in hull side recesses.

The vessel complies with the American Bureau of Shipping's 2020 Marine Vessel Rules for structures, as well as US Coast Guard CFR rules for towing stability at full power.

The new tug entered service with the USACE Walla Walla District in the second quarter of 2021 following construction that took place over the previous winter. It replaced an older vessel that had been utilised in the same debris-clearing role at the Little Goose Dam. Other duties include the transport of maintenance equipment and the placement of barriers at key points to enable USACE technicians to safely inspect and repair dam infrastructure.

<em>Photo: Cummins</em>
Photo: Cummins
26-foot Dam Maintenance Tug
SPECIFICATIONS
Type of vessel:Dam maintenance tug
Classification:American Bureau of Shipping; US Coast Guard
Flag:USA
Owner:US Army Corps of Engineers
Operator:US Army Corps of Engineers
Designer:Crescere Marine, USA
Builder:WCT Marine and Construction, USA
Hull construction material:Steel
Superstructure construction material:Steel
Deck construction material:Steel
Length overall:26 feet (7.92 metres)
Beam:13.5 feet (4.1 metres)
Draught:5.0 feet (1.5 metres)
Main engines:2 x Cummins QSB6.7, each 301 hp (224 kW)
Gearboxes:2 x ZF 325-I
Propulsion:2 x Workhorse four-bladed propellers
Steering system:Jog stick
Other equipment installed:2 x push knees; R.W. Fernstrum and Company engine keel coolers
Type of fuel:Diesel
Fuel capacity:350 gallons (1,324 litres)
Crew:1
