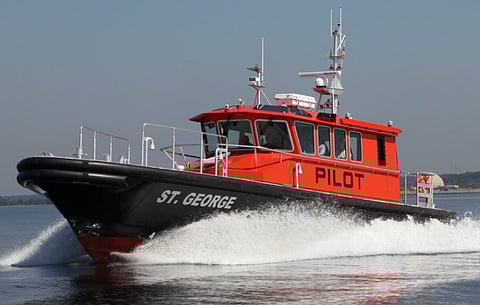

The Department of Marine and Ports Services (DMPS), an agency of the Government of Bermuda, recently took delivery of a new pilot boat built by Gladding-Hearn Shipbuilding in Massachusetts.
The Ray Hunt-designed St George replaces an older, similarly named Gladding-Hearn steel-hulled pilot boat that had been in service for 42 years. It utilises a deep-V hull layout that promises enhanced seakeeping capabilities in rough waters. The concept has already been proven on the slightly larger pilot/rescue boat St David, which was also designed by Ray Hunt for the DMPS.
The Lloyd's Register-classed St George has all-aluminium construction, an LOA of 52 feet (15.8 metres), a beam of 15.1 feet (4.6 metres), and a draught of 4.8 feet (1.46 metres). The main deck was built without any outer perimeter handrails to permit transfers via any point, ensuring greater operational flexibility. Peter Duclos, co-president at Gladding-Hearn Shipbuilding, said the design was developed to have a heavier than usual displacement to ensure greater longevity and reduced maintenance requirements.
Two Caterpillar C18 diesel engines that each produce 670 hp (499 kW) at 2,100 rpm drive five-bladed nibral propellers via ZF 500-1A gearboxes to deliver speeds of up to 24 knots. Also fitted are a Northern Lights 9kW generator to supply power for the onboard systems as well as keel cooling and dry exhaust systems for the engines.
The wheelhouse electronics include a Raymarine radar. The wheelhouse itself has exterior handrails to still allow safe passage along the main deck, reverse-angled windscreens to reduce glare, and upward-facing windows to improve visibility from the centre helm station, providing the coxswain with enhanced situational awareness necessary when conducting transfers to and from larger ships.
NorSap shock-mitigating seats are available for the coxswain and three passengers/pilots. Also within the wheelhouse are a baggage rack and a settee, while the forecastle is laid out with a toilet and berthing space. The interiors are kept comfortable by two Webasto 16,000Btu reverse-cycle AC units.
St George will complement the two-boat fleet for the Bermuda Branch Pilot Service and will provide pilot transfer support for all commercial vessels arriving and departing Bermuda. Thanks to the installation of a boarding ladder and recessed steps at the transom, the boat will also serve as a backup offshore search and rescue vessel to St David stationed in the East End.
St George | |
SPECIFICATIONS | |
Type of vessel: | Pilot/Rescue boat |
Classification: | Lloyd's Register |
Flag: | Bermuda |
Owner: | Department of Marine and Ports Services, Bermuda |
Designer: | Ray Hunt Design, USA |
Builder: | Gladding-Hearn Shipbuilding, USA |
Hull construction material: | Aluminium |
Superstructure construction material: | Aluminium |
Deck construction material: | Aluminium |
Length overall: | 52 feet (15.8 metres) |
Beam: | 15.1 feet (4.6 metres) |
Draught: | 4.8 feet (1.46 metres) |
Main engines: | 2 x Caterpillar C18, each 670 hp (499 kW) at 2,100 rpm |
Gearboxes: | 2 x ZF 500-1A |
Propulsion: | 2 x nibral propellers |
Generator: | Northern Lights, 9.0 kW |
Maximum speed: | 24 knots |
Radar: | Raymarine |
Other equipment installed: | 2 x Webasto AC units |
Seating: | 4 x NorSap |
Type of fuel: | Diesel |
Accommodation: | Toilet; berth |
Crew: | 1 |
Passengers: | 3 |
Operational area: | Bermuda |
