VESSEL REVIEW | Kinaki – Port Taranaki’s new harbour tug arrives from Turkey

 c7f06923f7757ccddc9a4a0717631f6c
c7f06923f7757ccddc9a4a0717631f6c
Published on

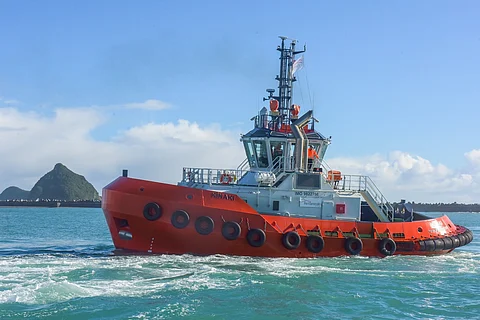

The new 25-metre harbour tractor tug Kinaki has completed its 73-day journey via heavy lift transport ship from Istanbul, Turkey, and arrived safely in Lyttelton, New Zealand. From there it sailed on its own bottom to its new home in Port Taranaki in New Plymouth.

This latest addition to the Port Taranaki tug fleet was built at Istanbul's Sanmar Shipyards and was the first to be completed in a new series.

Measuring at less than 24 metres loadline length, Kinaki packs in a lot of power and can sustain a bollard pull of 62 tonnes. The tug will be operated by three crew and is meant to replace the oldest of Port Taranaki's three tugs, the 47-year-old Kupe.

The name Kinaki was chosen by Ngati Te Whiti hapu and Port Taranaki through discussions with hapu (Maori sub-tribe) representatives including kaumatua (respected elders). Kinaki is also the name of one of two mouri (life principal) stones situated within the breakwater of Port Taranaki. A blessing ceremony was performed prior to the tug formally entering into service at the port.

Kinaki's hull and appendage arrangement was extensively model tested at the Vienna Model Basin and also analysed in house at designer Robert Allan Ltd. using computational fluid dynamics (CFD). The end result is an optimal balance between controllability, manoeuvrability, fuel efficiency and roll dampening.

The stern of the hull features simple but effective stabilisers developed by Robert Allan Ltd. and Voith for improved tractor tug directional stability allowing for a reduced skeg size and thereby improving manoeuvrability and fuel efficiency. These features were of particular importance to Port Taranaki's operation in the tough conditions experienced on New Zealand's west coast.

The vessel has been outfitted to the highest standards for a normal operating crew of three, with accommodations for up to six persons. One double cabin is located on the main deck, with two additional double crew cabins located on the lower accommodation deck. There is also a galley, mess room, and wet gear room located on the main deck.

The deck machinery comprises a DMT type TW-021-E250kN double drum towing winch on the aft deck, spooled with 165 metres of 60mm hawser towline on each drum.

The raised forecastle and elevated wheelhouse ensure good all-round visibility of the working decks and especially when performing ship-assist operations off the stern (the main working end of the tug). The higher bow freeboard feature provides an enhanced standard of sea-keeping when working in exposed waters and helps keep green water from getting onboard to a minimum.

Main propulsion comprises a pair of Caterpillar 3512C diesel engines, each rated 1,902bkW at 1,800rpm, and each driving a Rolls-Royce US 205 CP P20 Z-drive unit, with a 2.5-metre diameter controllable pitch propeller.

The electrical plant consists of two identical Caterpillar C4.4 diesel gensets, each with a power output of 99ekW at 1,500rpm.

Ship-handling fenders at the stern consist of one tier of 800mm OD by 400mm ID cylindrical fender at the main deck level. Tires provide protection at the main and forecastle sides and sheer lines, and a single row of 300 mm hollow "D" fender protects the bilge.

Kinaki
SPECIFICATIONS
Type of vessel:Harbour tug
Classification:ABS
Owner:Port Taranaki, New Zealand
Designer:Robert Allen Ltd., Canada
Builder:Sanmar Shipyards, Turkey
Length overall:25.3 metres
Length (loadline):<24 metres
Beam, moulded, extreme:12.0 metres
Depth, moulded (hull):4.55 metres
Maximum draught:5.74 metres
Gross tonnage:336GT
Main engines:2 x Caterpillar 3512C, each 1,902bkW @ 1,800rpm
Propulsion:2 x Rolls-Royce US 205 CP P20 Z-drives, 2.5m CPP
Gensets:2 x Caterpillar C4.4, each 99ekW @ 1,500rpm
Bollard pull:62 tonnes (ahead)
Free running speed:12.5 knots
Fuel oil:84m3
Potable water:12m3
Main engine lube oil:0.6m3
Fi-Fi foam:3.9m3
Used oil tank:3.0m3
Sewage tank:6.7m3
