VESSEL REVIEW | U501 – Finnish Navy’s newest workboat to perform logistical support duties

Baird Maritime

The Finnish Navy has taken delivery of a new logistics support workboat built by local company Kewatec Aluboat.

The all-aluminium U501 is the first in a planned class of nine to be built by Kewatec to replace many of the Finnish Navy's aging coastal auxiliary vessels. Deliveries of all nine vessels that will comprise the Uto-class will be completed by 2024.

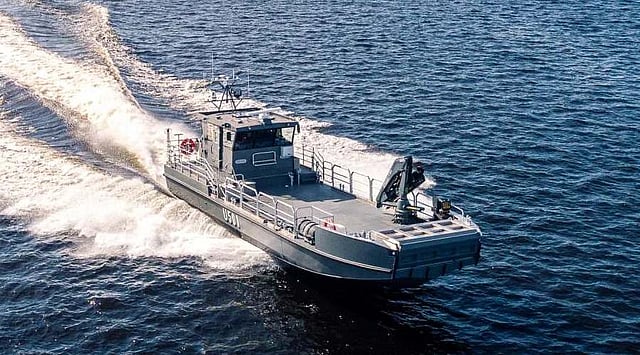

Photo: Finnish Defence Forces

The workboat has a length of 19.2 metres, a beam of 5.3 metres, a draught of 0.8 metres, and a displacement of 21.5 tonnes. There is also space for two crewmembers, a Fassi F120 deck crane with an 11-tonne lifting capacity, a bow door for loading and unloading, and capacity for 15 tonnes of cargo or additional personnel.

The transport capacity enables to Uto-class to fill the capability gap between the navy's smaller landing craft and the 680-tonne Pansio-class mine countermeasures vessels that have also been configured for supply duties. The shallow draught means the Uto-class can also access areas of coastline with limited jetty insfrastructure, giving the workboats increased operational flexibility.

Photo: Kewatec Aluboat

Two Scania DI13 diesel engines will drive Kongsberg KaMeWa S36-3 waterjets to propel the workboat to speeds of up to 25 knots. Fuel is fed by two 1,000-litre tanks while a keel cooling system will allow operations during winter without the risk of freezing.

Kewatec said the new vessel is a fast workboat that is ideal for sea transport of materiel and troops in the shallower waters of the Finnish archipelago.

Photo: Kewatec Aluboat

Facilities include a toilet, a galley, and accommodations for the two crewmembers. The onboard electronics meanwhile include a radar and a rotating thermal camera.

U501
SPECIFICATIONS
Type of vessel:Naval support workboat
Flag:Finland
Owner:Finnish Navy
Builder:Kewatec Aluboat, Finland
Hull construction material:Aluminium
Superstructure construction material:Aluminium
Deck construction material:Aluminium
Length overall:19.2 metres
Beam:5.3 metres
Draught:0.8 metres
Deadweight tonnage:15
Main engines:2 x Scania DI13
Propulsion:2 x Kongsberg KaMeWa S36-3 waterjets
Maximum speed:25 knots
Crane:Fassi F120
Other equipment installed:Keel coolers
Type of fuel:Diesel
Fuel capacity:2,000 litres
