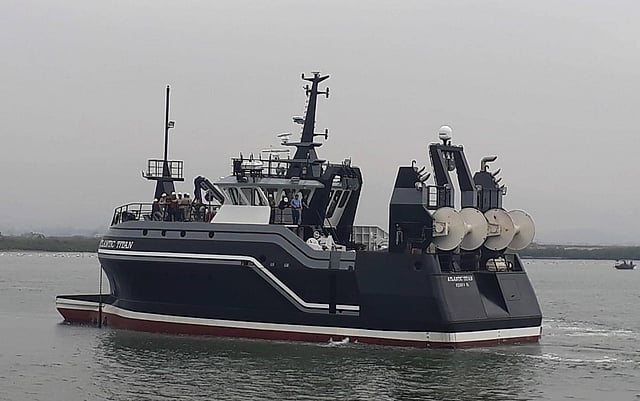

VESSEL REVIEW | Atlantic Titan – 27-metre crab and demersal fish trawler

Baird Maritime

A new 27-metre fishing vessel for the Piercy family of Newfoundland, Canada, has just been completed and handed over. The vessel, built in Vietnam and designed and kitted by Macduff Ship Design, has the capability to fish for crab and to trawl for demersal fish.

The vessel combines some traditional features with a distinctive modern design and layout and the latest in fishing technology. The vessel works the traditional local style of pot for crab fishing using a hydraulically operated main deck side hatch and hauler to starboard. This is combined with the ability to completely close this main deck area mid-ships, allowing it to convert to a full factory processing deck for modern fish processing and on-board freezing.

Crab fishing is completed using a hydraulic hauler, which is monitored from an offset helm position at the starboard side of the wheelhouse, with full depth windows positioned to offer a commanding view of both the hauling station and incoming line. The catch is released for sorting and then fed into two large 50,000-litre refrigerated salt water tanks to keep the catch in prime condition.

Photo: Jack Ronalds / MarineTraffic.com

Trawling for demersal fish is conducted from the large trawl deck located on shelter deck level behind the forecastle accommodation and wheelhouse. The whole of the trawl operation is monitored from a designated position at the aft end of the wheelhouse with full height windows which allows the skipper to have a clear view of all fishing gear at all times.

The Bopp-supplied trawl winches and net drums allow for single net trawling with the catch being taken aboard aft, up a stern ramp and through a hydraulic cod end hatch into a portable hopper on the processing deck. This deck can be completely closed during trawl operations with deck pumps keeping the space dry.

The processing deck is reconfigured for trawling to include hopper and processing equipment along with the fitting of three plate freezers supplied with the RSW system in an integrated refrigeration system by Paumier Marine. Once processed and frozen the catch is stored in the large 160 cubic metre freezer hold. The two RSW tanks can also be reconfigured with the removal of large portable panels to give an enlarged hold space with a total hold capacity of over 260 cubic metres.

The vessel is fitted with a Yanmar 6EY 17W main engine rated 749 kW at 1,350 rpm and is coupled to a Reintjes WAF 563 reversing gearbox with reduction ratio of 5.42:1. This drives a 2,000mm diameter fixed pitch propeller fitted in a nozzle, all supplied by Kort Propulsion. The vessel achieved a healthy 10.5 knots on trials.

The hull form, along with a high-lift rudder designed by Macduff Ship Design and bow thruster also supplied by Kort propulsion, gives the Atlantic Titan the excellent manoeuvrability required for the day-to-day fishing operations. The vessel is also fitted with bilge keels for roll reduction.

Below deck, when combined the fish hold and tanks have a capacity for 170 660-litre seaplast tubs. The main fish hold, positioned forward, has the ability to either refrigerate catch or fully freeze depending on the type of fish targeted and the duration of the voyage. Aft of the main hold and roughly amidships are two large 50-tonne refrigerated seawater holds which hold crab but can also be fully opened using hinged portable panels to augment the fish hold capacity. The entire refrigeration system was designed and supplied by Paumier Marine to the owner's requirements.

Below the fish hold are positioned two fresh water tanks supplying a total of 23,000 litre of water for domestic systems on board. The vessel also has four main fuel tanks and two service tanks giving a total fuel capacity of 65,000 litres, which affords the vessel an extensive range.

The crew accommodation comprises three four-berth cabins and two single berth cabins as well as WC facilities, all positioned on the shelter deck below the wheelhouse. On the main deck level forward there is a large mess and lounge area which allows for comfortable seating and an area where the crew can relax and watch TV. The comprehensive galley is accessed from the mess with separate provisions store and is fitted out to a modern and high standard with commercial quality equipment.

Following successful sea trials completed in Vietnam the Atlantic Titan was loaded as deck cargo onto a cargo ship. The delivery voyage took her across the Pacific through the Panama Canal and up the Eastern seaboard of America to be offloaded in Halifax before a short transit to the home port of Saint Johns Newfoundland. Here she underwent final commissioning prior to formal handover to the owners.

Atlantic Titan
SPECIFICATIONS
Type of vessel:Crab/demersal fishing vessel
Classification:Bureau Veritas; Transport Canada
Port of registry:Sant Johns, Newfoundland
Flag:Canadian
Owner:Hill Enterprises, Canada
OperatorSteve Piercey, Canada
Designer:Macduff Ship Design, UK
Builder:Ship Building Asia, Vietnam
Hull construction material:Steel
Superstructure construction material:Steel/aluminium
Deck construction material:Steel
Length overall:31.76 metres
Length waterline:30.51 metres reg
Length bp:26.15 metres
Beam:10.30 metres
Draught:4.50 metres
Depth:5.0 metres
Displacement:800 t (full load)
Gross tonnage:499
Net tonnage:148.8
Main engine:Yanmar 6EY 17W
Gearbox:Reintjes WAF 563
Propulsion:Kort Propulsion, 2,000mm FPP in nozzle
Auxiliary engine:Yanmar 6AYM-WST, 485 kW @ 1 900 rpm
Generators:

Nanni 180 kW;

Nanni 130 kW;

Nanni 80 kW

Side thruster:Kort Propulsion bow thruster
Steering system:Wills Ridley
Maximum speed:10.5 knots
Cruising speed:9 knots
Range:45 days
Bollard pull:17.5 t
Hydraulic equipment:Bopp
Electronics supplied by:Atlantic Electronics
Radars:Furuno FAR1518; Furuno FAR 1513
Depth sounders:2 x Furuno FCV1900G
Radios:2 x Icom M506 VHF; Icom M802 SSB
Satcom:

Globalstar 2900 phone system;

9600 wifi box

Autopilot:Navpilot 711C
Compass/es:Furuno SC30
GMDSS:Furuno
GPS:Furuno GP39
Plotters:Olex; Time Zero
AIS:Furuno
Audio video system:Intellian 16
Other electronics:Sasco VMS system; Notus trawl monitoring
WinchesDual hydraulic trawl winches with 17t line pull, spool gear and bridge control with warp length and towing tons
Capstan/windlass:Two hydraulic anchor winches forward
Crane:Palfinger PK 8500 TM
Other deck equipment:

Crab pot hauler;

3 x Gilson winches;

Rear capstan;

2 x net drums

Fishing equipment:Otter trawl and crab traps
Other equipment installed:Paumier RSW and refrigeration systems
Alarm system:Alewijnse
Paints/coatings:International. Flame sprayed galvanise main deck
Windows:Heated with wipers and wash system
Floor/deck surface finishes:Boldt
Safety equipment:Datema
Liferaft:Survitec Zodiac
Type of fuel:Marine diesel
Fuel capacity:65,000 L
Freshwater capacity:23,500 L
Sewage/blackwater capacity:2,250 L
Accommodation:14
Crew:14
