VESSEL REVIEW | Mooloolaba – Top-of-the-line patrol/rescue boat for Australia’s north-east

Baird Maritime

The water police service of the Australian state of Queensland contacted Hart Marine in 2017 with the proposal to produce two high-speed police patrol vessels.

It required a fast response, all weather police patrol vessel, with safety, fuel economy and seakeeping capability being high priorities. The owner wanted a larger, more seaworthy vessel to enable response in harsher sea conditions, which significantly improves the police force's ability to respond in all situations.

Through close work with representatives of Queensland Police, Hart Marine was able to customise one of its models with these specific needs in mind.

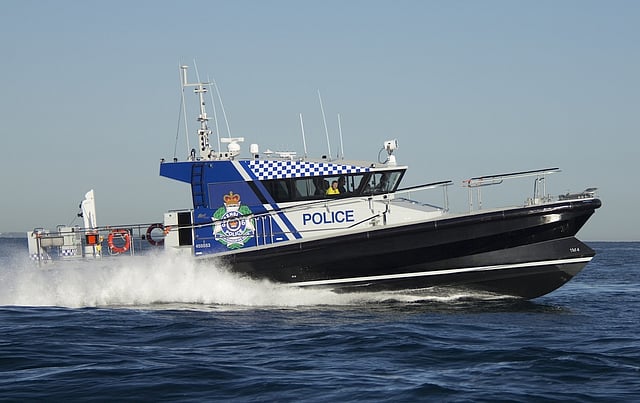

Mooloolaba, the second of the two vessels, operates in NSCV class 2B and 2C waters, conducting patrols, rescue, and police duties in the waterways around Mooloolaba. Her high-speed seakeeping ability and manoeuvrability make her an ideal police patrol and rescue vessel as well as being a fast response craft.

According to Hart marine, the most complex part of the build was the internal fitout. The client had many requirements, which naturally led to space issues. In order to meet the requirements, every bit of available space had to be utilised.

Hart Marine said that working with the client to optimise the layout of the vessel and utilise all space to the maximum potential was critical in this build.

"During the build, a lot was learned about the internal fit out of our boats, and the more innovative ways in which we can create more storage without compromising on the serviceability and reliability of our vessels," said Graeme Taylor, General Manager at Hart Marine.

Mooloolaba has been fitted with twin marine engines rated at 860 kW at 2,300 rpm coupled to Hamilton HJ 403 waterjets. Due to the flat output curve of the engines, Hart was able to couple the engine with the jets without the use of a gearbox. Neutral is selected by lowering the jet buckets to direct an equal amount of water forward and astern.

"Removing the gearboxes gave us a weight saving of approximately 600 kg and no power losses in a gearbox which are around three per cent," added Mr Taylor. "From this, we were able to select the coarsest impeller for the HJ 403 jet giving the best possible performance through the mid-range speeds."

The outcome was excellent with the vessel achieving a top speed of 42 knots and a cruise speed of 28 knots.

"The waterjet installations are new to Hart Marine ORC vessels and were a request of our client Queensland Police. We have achieved an amazing propulsion package with exhilarating performance. The vessel is exceptionally controllable at 42 knots. We doubt that there will be many crooks getting away from this one!"

Garmin 22" touch screens were chosen by the client along with Czone switching. This is the first Hart Marine vessel to be fitted with Czone, which provides for all switching to be done on a centralised touch screen.

The vessel is fitted with Ocean 3 fenders for the full length of the shear and a lower fender in the boarding area. It has a large open aft deck that creates a great working platform for all police operations from boarding vessels to dive operations. There is also a swim platform and divers ladder to assist with dive operations.

Also on the aft deck is a davit to lift a 4.5-metre tender or jet ski onto the deck. The Queensland Police specification had a lot of equipment included in it and some excellent functionality, from 240V bilge pumps to toilet treatment systems.

Queensland Police's pair of new patrol/rescue boats

Mooloolaba
SPECIFICATIONS
Type of vessel:Patrol/rescue boat
IMO Number:UVI 455553
Classification:NSCV class 2B and 2C
Port of registry:Mooloolaba, Australia
Flag:Australia
Owner:Queensland Police Service, Australia
Designer:Pantocarene, France
CAD software:Rhino / Autocad
Builder:Hart Marine, Australia
Construction material:FRP
Length overall:18.57 metres
Length waterline:16.57 metres
Beam:5.69 metres
Draught:0.94 metres
Depth:2.29 metres
Displacement:29 t (full load)
Main engine/s:2 x 860 kW inboard engines
Propulsion:2 x Hamilton HJ403
Generator/s:Cummins Onan MDKDR. 21.5 kW
Steering system:HamiltonJet
Maximum speed:42 knots
Cruising speed:36 knots
Range:400 nm
Electronics supplied by:Olectric Systems
Radar:Garmin MR Fantom 4, 4-foot
Depth sounder/sonar:Garmin GSD25 sounder module with built-in dual CHIRP sonar, CHIRP DownVu and CHIRP SideVu scanning sonar
Radio:Icom 560E VHF transceiver combined with NMEA connection kit
Satcom:Sailor Fleet One system
Autopilot:Garmin GHP20 Reactor hydraulic autopilot (helm)
Compasses:

Danforth Constellation C401D 114mm magnetic steering compass;

Furuno SC50 satellite compass

GPS:Garmin GPS map 8422 22" MFD multi-touch widescreen/sonar with Garmin BlueChart G2 Vision
AIS:SAAB R5 Solid
Audio video system:2 x 32" Samsung TV with streaming capability
Capstan/windlass:Muir VR 2500 24V DE
Crane:FEM structure folding 2000
Seating:Shockwave
Lighting:Hella
Liferaft/s:2 x Marsafe, 8-man
Tenders:Jetski stowage on aft deck
Type of fuel:Diesel
Fuel capacity:4,000 L
Freshwater capacity:400 L
Sewage/blackwater capacity:150 L
Crew:2
Passengers:12
